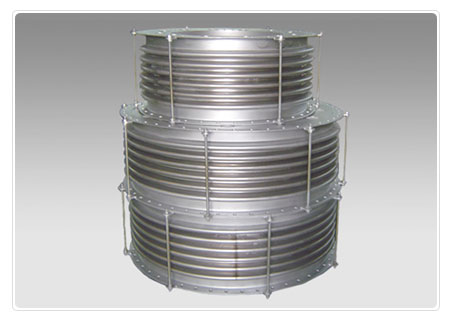

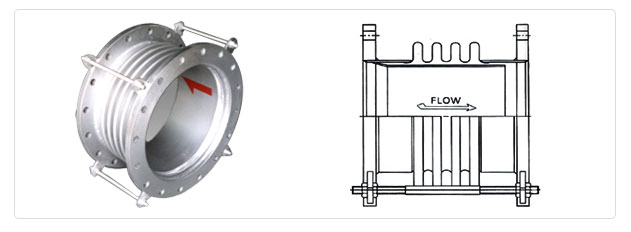

자유형(Free Type)


호칭경 Bellows두께
[mm]
PXH
[mm]
산수 면간길이
[mm]
축방향
신축량
축직각방향
신축량
각변위량
[deg.]
신축박력 유효경
[mm]
유효단면적
[㎠]
X[kg/mm]
50A 0.4 10X12 10 240 ±12 5.5 18.5 5.0 3.0 68.0 36
65A 0.4 10X12 10 250 ±12 4.4 16.5 6.0 6.0 83.0 54
80A 0.4 10X12 6 250 ±12 3.9 14.1 5.0 9.0 102.0 82
12 340 ±25 15.8 22.2 3.0 2.0
100A 0.4 12X12 6 250 ±12 3.3 18.6 6.0 15.0 122.0 117
12 360 ±25 13.0 22.6 3.0 2.0
125A 0.6 12X15 5 250 ±15 3.1 10.8 9.0 32.0 154.0 186
10 360 ±30 12.5 22.3 5.0 5.0
150A 0.8 15X15 5 300 ±15 4.0 9.9 16.9 43.1 180.0 254
10 440 ±30 15.9 19.9 8.5 5.4
200A 1.0 15X18 4 300 ±16 2.6 7.6 14.0 83.4 239.0 449
8 440 ±32 10.7 15.3 7.0 10.4
250A 1.0 20X22 4 300 ±18 2.3 6.0 27.4 269.6 292.0 670
7 440 ±32 8.8 12.4 14.4 30.7
300A 1.0 25X25 3 300 ±18 2.3 6.0 27.4 269.6 346.0 940
5 440 ±30 6.5 9.9 16.4 58.2
7 524 ±42 12.7 13.9 11.7 21.2
350A 1.0 30X30 3 300 ±23 2.9 6.6 18.8 189.0 388.0 1182
5 440 ±37 8.0 11.1 11.3 40.8
6 524 ±45 11.6 13.3 9.4 23.6
400A 1.0 40X40 3 300 ±23 2.6 9.8 21.3 271.8 438.0 1507
5 475 ±37 7.1 11.8 12.8 58.7
6 545 ±45 10.3 5.1 10.6 34.0
450A 1.0 40X40 3 300 ±23 2.2 8.4 24.8 434.2 512.0 2059
5 475 ±37 6.1 10.1 14.9 93.8
6 545 ±45 8.8 4.8 12.4 54.2
500A 1.2 50X50 3 300 ±23 2.1 8.0 26.1 500.9 537.0 2265
5 475 ±37 5.8 9.6 15.6 108.2
6 545 ±45 8.4 2.8 13.0 62.6
600A 1.2 60X60 3 300 ±23 1.0 7.0 48.2 2199.6 662.0 3442
5 475 ±37 6.0 8.3 19.3 140.8
6 545 ±45 8.7 2.4 16.1 81.5
700A 1.5 60X60 3 300 ±16 0.8 2.0 55.6 3381.0 764.0 4584
5 475 ±40 5.2 7.2 22.2 216.4
6 545 ±49 7.5 3.2 18.5 125.2
800A 1.5 60X60 3 400 ±16 1.6 5.3 82.0 2839.7 865.0 5877
5 580 ±40 4.5 7.4 49.2 613.4
6 600 ±48 6.6 2.9 41.0 355.0
900A 1.5 60X60 3 400 ±24 1.5 4.8 90.4 3809.5 954.0 7148
5 580 ±40 1.4 5.8 54.2 822.9
6 640 ±418 6.0 2.6 45.2 476.2
1000A 1.5 60X60 3 400 ±24 1.3 4.3 100.5 5225.7 1060.0 8825
5 580 ±40 3.7 5.2 60.3 1128.7
6 640 ±48 5.4 2.4 50.2 653.2
1100A 1.5 60X60 3 400 ±24 1.2 4.0 110.1 6884.1 1162.0 10605
5 580 ±40 3.4 4.7 66.1 1487.0
6 640 ±48 5.0 3.2 55.1 860.5
1200A 1.5 60X60 3 400 ±24 1.1 3.6 119.1 8714.3 1257.0 12410
5 580 ±40 3.2 4.4 71.5 1882.3
6 640 ±48 4.5 2.2 59.6 1089.3
1300A 1.5 60X60 3 400 ±24 1.0 3.4 128.5 10939.7 1356.0 14441
5 580 ±40 2.9 4.1 77.1 2363.0
6 640 ±48 4.2 1.9 64.3 1367.5
1400A 1.5 60X60 3 400 ±24 1.0 3.1 138.0 10542.9 1456.0 16650
5 580 ±40 2.7 3.8 82.8 2925.3
6 640 ±48 4.0 1.7 69.0 1692.9
1500A 1.5 60X60 3 400 ±24 0.9 2.9 148.4 16850.0 2056.0 19261
5 580 ±40 2.5 3.5 89.0 3639.6
6 640 ±48 3.6 1.3 74.2 2106.3
2000A 1.5 75X75 3 420 ±24 0.7 2.2 194.9 38132.5 2575.0 33200
5 600 ±40 1.9 2.7 116.9 8236.6
6 660 ±48 2.8 0.8 97.4 4766.6
2500A 2.0 75X75 2 460 ±18 0.3 1.6 444.3 196380.2 2575.0 52077
4 620 ±36 1.4 2.0 222.1 24547.5
5 700 ±45 2.1 0.6 177.7 12568.3
3000A 2.0 75X75 2 560 ±18 0.3 1.3 530.5 334427.0 3075.0 74264
4 720 ±36 1.1 1.6 265.3 41803.4
5 800 ±45 1.8 1.6 212.2 21403.3
